IXYA8N90C3D1

IGBT

IXYA8N90C3D1 Features

* Optimized for Low Switching Losses

* Square RBSOA

* Positive Thermal Coefficient of Vce(sat)

* Anti-Parallel Ultra Fast Diode

* Avalanche Rated

* International Standard Packages Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* High Fre

IXYA8N90C3D1 Datasheet (332.76 KB)

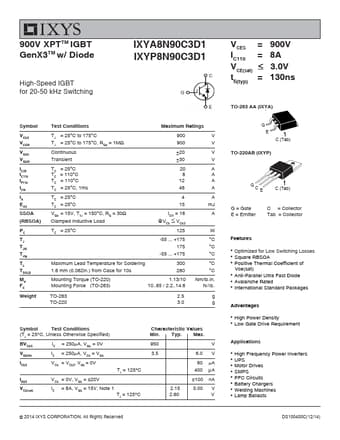

Preview of IXYA8N90C3D1 PDF

Datasheet Details

Part number:

IXYA8N90C3D1

Manufacturer:

IXYS

File Size:

332.76 KB

Description:

Igbt.
900V XPTTM IGBT GenX3TM w/ Diode High-Speed IGBT for 20-50 kHz Switching IXYA8N90C3D1 IXYP8N90C3D1 Symbol VCES VCGR VGES VGEM IC25 IC110 IF110 ICM I.
