IXYH120N65A5 - IGBT

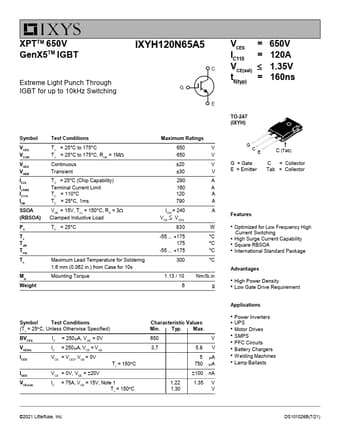

XPTTM 650V GenX5TM IGBT IXYH120N65A5 Extreme Light Punch Through IGBT for up to 10kHz Switching VCES = I = C110 V  CE(sat) tfi(typ) = 650V 120A 1.35V 160ns Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 ICM SSOA (RBSOA) PC TJ TJM T stg TL Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC = 25°C (Chip Capability) Terminal Current Limit TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 3 Clamped Inductive Load TC = 25°C Maximum Lead .

IXYH120N65A5 Features

* Optimized for Low Frequency High Current Switching

* High Surge Current Capability

* Square RBSOA

* International Standard Package Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Drives

* SMPS

* P
