IXYP20N65B3 IGBT

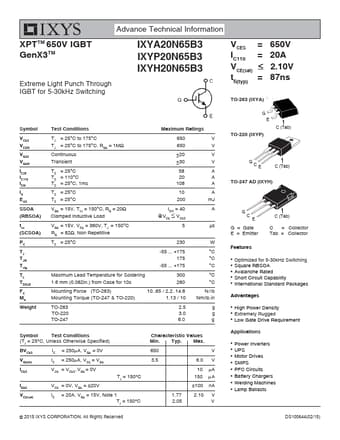

Advance Technical Information XPTTM 650V IGBT GenX3TM Extreme Light Punch Through IGBT for 5-30kHz Switching IXYA20N65B3 IXYP20N65B3 IXYH20N65B3 VCES = 650V IC110 = 20A VCE(sat)  2.10V tfi(typ) = 87ns TO-263 (IXYA) Symbol VCES VCGR VGES VGEM IICC12150 ICM IA EAS SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions Maximum Ratings TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient 650 V 650 V ±20 V ±30 V TTCC = 25°C = 110°C TC = 25°C, 1ms.

IXYP20N65B3 Features

* Optimized for 5-30kHz Switching

* Square RBSOA

* Avalanche Rated

* Short Circuit Capability

* International Standard Packages Advantages

* High Power Density

* Extremely Rugged

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Dr
