* q NPT IGBT technology q low saturation voltage q low switching losses q switching frequency up to 30 kHz q square RBSOA, no latch up q high short circuit capability q positive temperature coefficient for easy parallelling q MOS input, voltage controlled q ultra fast free wheeling diodes q package wi

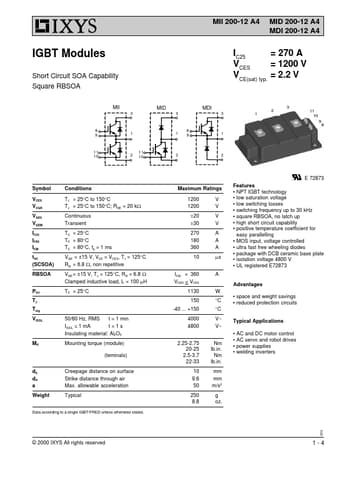

MDI200-12A4 Datasheet (113.49 KB)
MDI200-12A4
IXYS
113.49 KB
Igbt module.
IGBT Modules
Short Circuit SOA Capability Square RBSOA
MII 200-12 A4 MID 200-12 A4 MDI 200-12 A4
IC25 = 270 A
VCES
= 1200 V
V = 2.2 V CE(sat) typ.
