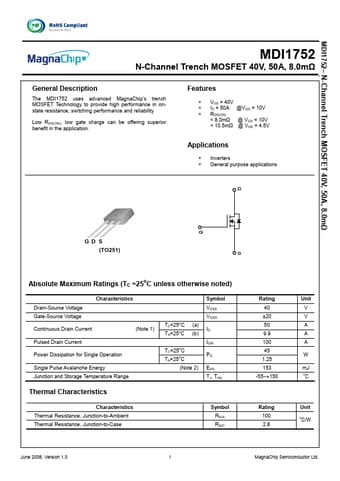

MDI1752 Datasheet, Mosfet, MagnaChip

MDI1752 Features

• Mosfet VDS = 40V ID = 50A @VGS = 10V RDS(ON) < 8.0mΩ @ VGS = 10V < 10.5mΩ @ VGS = 4.5V Applications Inverters General purpose applications D GD S (TO251) G S Absolute Maximum Ratings (TC =

PDF File Details

Part number:

MDI1752

Manufacturer:

MagnaChip

File Size:

691.97kb

Download:

📄 Datasheet

Description:

N-channel trench mosfet. The MDI1752 uses advanced MagnaChip’s trench MOSFET Technology to provide high performance in onstate resistance, switching performan

MDI1752 Application

• Applications Inverters General purpose applications D GD S (TO251) G S Absolute Maximum Ratings (TC =25oC unless otherwise noted) Drain-Source
