MDI1N60S Datasheet, Mosfet, MagnaChip

MDI1N60S Features

  • Mosfet VDS = 600V ID = 1.0A RDS(ON) ≤ 8.5Ω @VGS = 10V @VGS = 10V Applications Power supply Battery charger Ballast IPAK (Short lead) G D S Absolute Maximum Ratings (Ta = 25oC) Characteris

PDF File Details

Part number:

MDI1N60S

Manufacturer:

MagnaChip

File Size:

761.49kb

Download:

📄 Datasheet

Description:

N-channel trench mosfet. The MDI1N60S uses advanced MagnaChip’s MOSFET technology, which provides low on-state resistance, high switching performance and exce

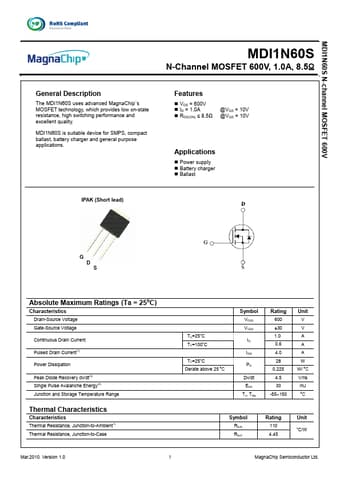

Datasheet Preview: MDI1N60S 📥 Download PDF (761.49kb)
Page 2 of MDI1N60S Page 3 of MDI1N60S

MDI1N60S Application

  • Applications Features VDS = 600V ID = 1.0A RDS(ON) ≤ 8.5Ω @VGS = 10V @VGS = 10V Applications Power supply Battery charger Ballast IPAK (Short l
