Part number:
MDI2N60
Manufacturer:
MagnaChip
File Size:
744.66 KB
Description:
N-channel trench mosfet.

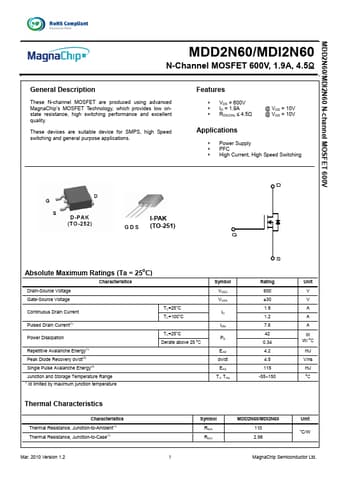

* VDS = 600V ID = 1.9A RDS(ON) ≤ 4.5Ω @ VGS = 10V @ VGS = 10V Applications Power Supply PFC High Current, High Speed Switching D I-PAK G D S (TO-251) G Absolute Maximum Ratings (Ta = 25oC) Characteristics Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current(1) P
MDI2N60
MagnaChip
744.66 KB
N-channel trench mosfet.
