MITB15WB1200TMH Datasheet - IXYS

MITB15WB1200TMH Converter - Brake - Inverter Module

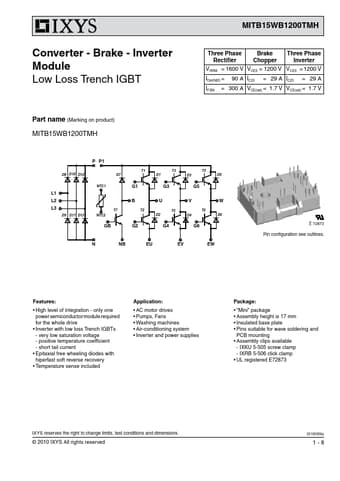

Converter - Brake - Inverter Module Low Loss Trench IGBT MITB15WB1200TMH Three Phase Rectifier Brake Three Phase Chopper Inverter VRRM = 1600 V VCES = 1200 V VCES = 1200 V IDAVM25 = 90 A IC25 = 29 A IC25 = 29 A IFSM = 300 A VCE(sat) = 1.7 V VCE(sat) = 1.7 V Part name (Marking on product) MITB15WB1200TMH P P1 D8 D10 D12 L1 L2 L3 D9 D11 D13 NTC1 D7 NTC2 T7 GB T1 G1 T3 D1 G3 B T2 G2 U T4 D2 G4 T5 D3 G5 V T6 D4 G6 D5 W D6 N NB EU EV EW E 72873 Pin configuration see.

MITB15WB1200TMH Features

* High level of integration - only one power semiconductor module required for the whole drive

* Inverter with low loss Trench IGBTs - very low saturation voltage - positive temperature coefficient - short tail current

* Epitaxial free wheeling diodes with h

MITB15WB1200TMH Datasheet (165.45 KB)
