MIT-5A11B

SLOTTED PHOTOINTERRUPTER

MIT-5A11B Features

* l l l l l 0.50 (.020) Non -contact switching For- direct pc board Dual - in - line socket mounting Fast switching speed Choice of mounting configuration. 6.00 (.236) 2.54 (.100) 1.58 (.062) 0.50 (.020) 1.50 (.059) 9.50 (.370) 4.00 (.157) 5.00 (.197) 2.85 (.112) 7.27 (.286) φ1.50 (.059) 1.3

MIT-5A11B General Description

The MIT-5A11B consists of a Gallium Arsenide infrared emitting diode and a NPN silicon phototransistor built in a black plastic housing . It is a transmissive subminiature photointerrupter. 2 1 11.00 (.433) 7.00 (.276) MIT-5A11B Package Dimensions 13.00 (.512) Unit: mm ( inches ) 4 3 2.00 (.079).

MIT-5A11B Datasheet (47.59 KB)

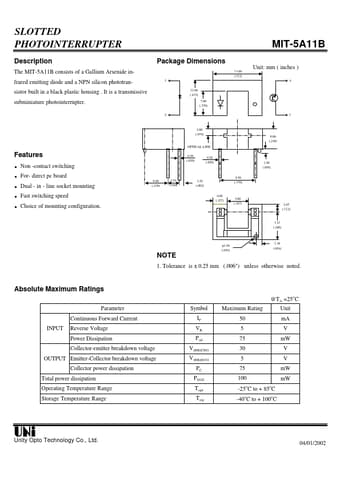

Preview of MIT-5A11B PDF

Datasheet Details

Part number:

MIT-5A11B

Manufacturer:

Unity Opto Technology

File Size:

47.59 KB

Description:

Slotted photointerrupter.
