MIT-5A11J Datasheet - Unity Opto Technology

MIT-5A11J - SLOTTED PHOTOINTERRUPTER

The MIT-5A11J consists of a Gallium Arsenide infrared emitting diode and a NPN silicon phototransistor built in a black plastic housing .

It is a transmissive subminiature photointerrupter.

11.00 (.433) 7.00 (.276) 2 1 MIT-5A11J Package Dimensions Unit : mm (inches) 13.00 (.512) 4 3 2.00 (.079)

MIT-5A11J Features

* l l l l l 0.50 (.020) 0.50 (.020) Non -contact switching For- direct pc board Dual - in - line socket mounting Fast switching speed Choice of mounting configuration. 6.00 (.236) 2.54 (.100) 1.58 (.062) 9.50 (.370) 1.50 (.059) 4.00 (.157) 5.00 (.197) 2.85 (.112) 7.27 (.286) φ1.50 (.059) 1.3

MIT-5A11J-UnityOptoTechnology.pdf

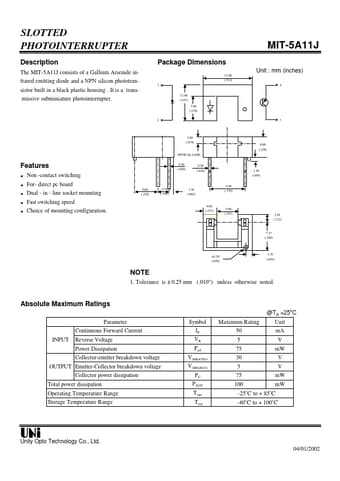

Preview of MIT-5A11J PDF
MIT-5A11J Datasheet Preview Page 2 MIT-5A11J Datasheet Preview Page 3

Datasheet Details

Part number:

MIT-5A11J

Manufacturer:

Unity Opto Technology

File Size:

45.97 KB

Description:

Slotted photointerrupter.
