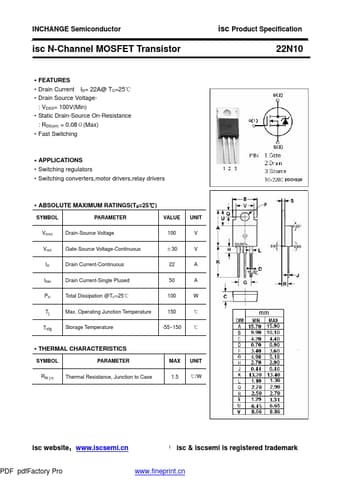

22N10 Datasheet, Mosfet, Inchange Semiconductor

22N10 Features

• Mosfet
• Drain Current ID= 22A@ TC=25℃
• Drain Source Voltage- : VDSS= 100V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 0.08Ω(Max)
• Fast Switching
<

PDF File Details

Part number:

22N10

Manufacturer:

Inchange Semiconductor

File Size:

60.28kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

22N10 Application

• Applications
• Switching regulators
• Switching converters,motor drivers,relay drivers
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYM
