22N20

N-Channel Power MOSFET

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Amphenol Aerospace QWLD05R22N20S RECEPT DigiKey 0 2 units
$661.32

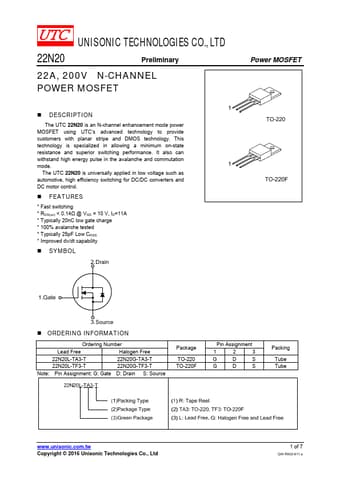

22N20 Datasheet (188.51 KB)

Preview of 22N20 PDF Datasheet

Datasheet Details

Part number:

22N20

Manufacturer:

Unisonic Technologies

File Size:

188.51 KB

Description:

N-channel power mosfet

22N20 Features

* Fast switching

* RDS(on) < 0.14Ω @ VGS = 10 V, ID=11A

* Typically 20nC low gate charge

* 100% avalanche tested

* Typically 25pF Low CRSS

* Improved dv/dt capability

* SYMBOL Power MOSFET

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free 22N20L-TA3-

22N20 General Description

The UTC 22N20 is an N-channel enhancement mode power MOSFET using UTC’s advanced technology to provide customers with planar stripe and DMOS technology. This technology is specialized in allowing a minimum on-state resistance and superior switching performance. It also can withstand high energy puls.
