22N60 - N-CHANNEL POWER MOSFET

Unisonic Technologies

📥 Download Datasheet

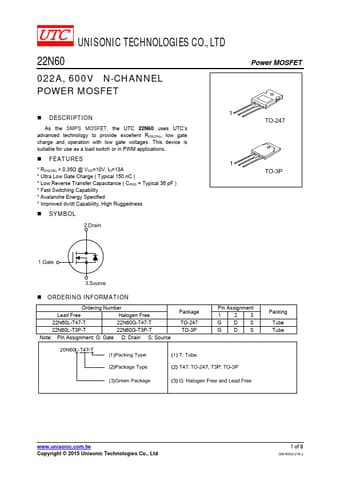

22N60 Datasheet Preview — Preview of 22N60 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	22N60
Manufacturer	Unisonic Technologies
File Size	239.68 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	22N60_UnisonicTechnologies.pdf

22N60 Product details

Description

As the SMPS MOSFET, the UTC 22N60 uses UTC’s advanced technology to provide excellent RDS(ON), low gate charge and operation with low gate voltages.

Features

RDS(ON) < 0.35Ω @ VGS=10V, ID=13A.
Ultra Low Gate Charge ( Typical 150 nC ).
Low Reverse Transfer Capacitance ( CRSS = Typical 36 pF ).
Fast Switching Capability.
Avalanche Energy Specified.
Improved dv/dt Capability, High Ruggedness.
SYMBOL Power MOSFET.
