22N50 N-Channel MOSFET

22N50 Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 22N50 *.

22N50 Features

* Drain Current ID= 22A@ TC=25℃
* Drain Source Voltage : VDSS= 500V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.25Ω(Max)
* Fast Switching

22N50 Applications

* Switch mode power supply.
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 500 ±30 V V ID Drain Current-Continuous 22 A PD Total Dissipation @TC=25℃ 275 W Tj Max. Operating Junction Temperature 150 ℃ Ts

📥 Download Datasheet

Preview of 22N50 PDF

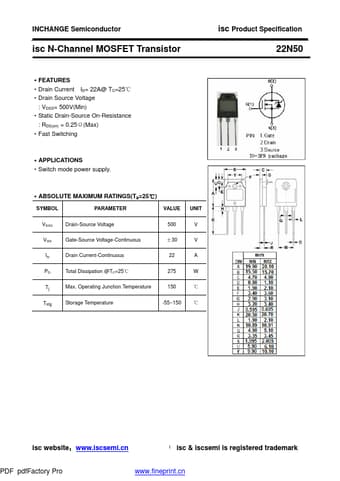

datasheet Preview Page 2
