2SA1068 - POWER TRANSISTOR

2SA1068 Description

isc Silicon PNP Power Transistor 2SA1068 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -150V(Min. Good Linearity of hFE. Wide Area of Safe Operation. Minimum Lot-to-Lot.

2SA1068 Applications

* Designed for AF amplifier, high power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -150 V VCEO Collector-Emitter Voltage -150 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -10 A ICM Coll

📥 Download Datasheet

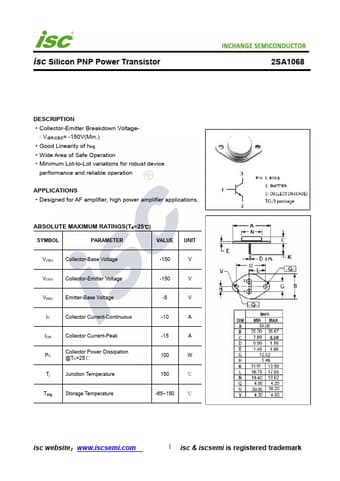

Preview of 2SA1068 PDF
datasheet Preview Page 2
