2SA1303 Datasheet - Inchange Semiconductor

2SA1303, POWER TRANSISTOR

isc Silicon PNP Power Transistor .
High Collector-Emitter Breakdown Voltage- V(BR)CEO= -150V(Min). Good Linearity of hFE. Complement to Type 2SC3284. Minimum Lot-to-Lot.

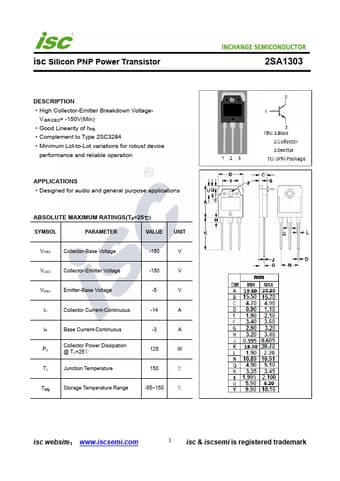

datasheet Preview Page 1 from Datasheet4u.com

2SA1303_InchangeSemiconductor.pdf

2SA1303 Datasheet Preview — Preview of 2SA1303 PDF

Datasheet Details

Part number:

2SA1303

Manufacturer:

Inchange Semiconductor

File Size:

220.79 KB

Description:

POWER TRANSISTOR

Applications

* Designed for audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -150 V VCEO Collector-Emitter Voltage -150 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -14 A IB Base Current-C
