2SA1327 - POWER TRANSISTOR

2SA1327 Description

isc Silicon PNP Power Transistor .
Low Collector Saturation Voltage- : VCE(sat)= -0. High DC Current Gain- : hFE= 70(Min. Minimum Lot-to-Lot var.

2SA1327 Applications

* Strobe flash applications.
* Audio power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -50 V VCEO Collector-Emitter Voltage -20 V VEBO Emitter-Base Voltage -8 V IC Collector Current-Continuous -10 A ICM

📥 Download Datasheet

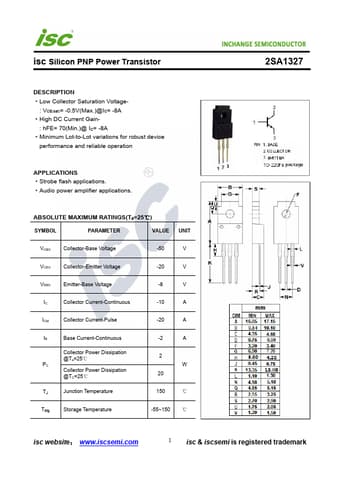

Preview of 2SA1327 PDF
datasheet Preview Page 2
