2SA1304 - POWER TRANSISTOR

2SA1304 Description

isc Silicon PNP Power Transistor 2SA1304 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -150V(Min). Complement to Type 2SC3296. Minimum Lot-to-Lot variations for robust device.

2SA1304 Applications

* Power amplifier applications.
* Vertical output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current-Continuous IB Base Current-Continuous Collector

📥 Download Datasheet

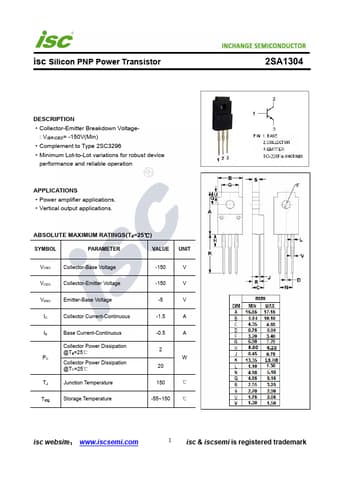

Preview of 2SA1304 PDF
