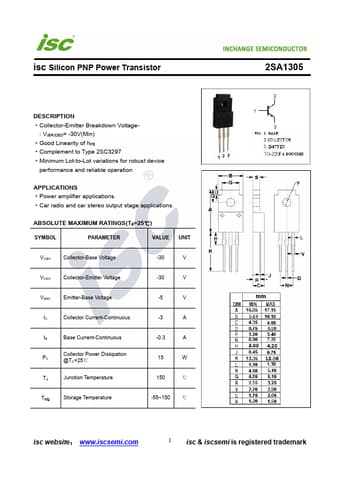

2SA1305 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SA1305

Manufacturer:

Inchange Semiconductor

File Size:

217.94kb

Download:

📄 Datasheet

Description:

Power transistor.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -30V(Min)

Good Linearity of hFE

Complement to Type 2SC329

2SA1305 Application

• Applications
• Power amplifier applications.
• Car radio and car stereo output stage applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
