2SC4442 - Silicon NPN Power Transistor

Datasheet Summary

Description

Collector-Base Breakdown Voltage- : V(BR)CBO= 500V(Min.) Wide Area of Safe Operation High Speed Switching 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high speed switchi

📥 Download Datasheet

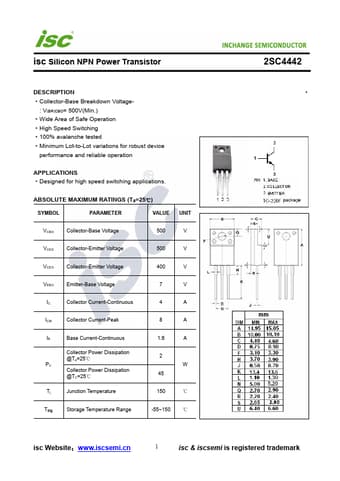

Datasheet preview – 2SC4442

Datasheet Details

Part number 2SC4442
Manufacturer Inchange Semiconductor
File Size 180.92 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SC4442 Datasheet
Additional preview pages of the 2SC4442 datasheet.

📁 Similar Datasheet

  • 2SC4440 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SC4441 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SC4443 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SC4445 - Silicon NPN Transistor (Sanken electric)
  • 2SC4445 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4445 - NPN Transistor (INCHANGE)
  • 2SC4446 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SC4446 - NPN Epitaxial Planar Silicon Transistor (Guangdong Kexin Industrial)
  • 2SC4448 - NPN Transistor (Toshiba Semiconductor)
  • 2SC4448 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Inchange Semiconductor
  • 2SC4430 - Silicon NPN Power Transistors
  • 2SC4460 - Silicon NPN Power Transistors
  • 2SC4461 - Silicon NPN Power Transistor
  • 2SC4001 - Silicon NPN Power Transistor
  • 2SC4003 - Silicon NPN Power Transistor
  • 2SC4005 - Silicon NPN Transistor
  • 2SC4007 - Silicon NPN Power Transistor
  • 2SC4027 - Silicon NPN Power Transistor

Full PDF Text Transcription

Click to expand full text
isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC4442 DESCRIPTION · ·Collector-Base Breakdown Voltage- : V(BR)CBO= 500V(Min.) ·Wide Area of Safe Operation ·High Speed Switching ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for high speed switching applications. ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCES Collector-Emitter Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 4 A ICM Collector Current-Peak 8 A IB Base Current-Continuous Collector Power Dissipation @Ta=25℃ PC Collector Power Dissipation @TC=25℃ Tj Junction Temperature 1.
