2SK1803 Datasheet PDF - Inchange Semiconductor N-Channel MOSFET Transistor Specs

2SK1803 - N-Channel MOSFET Transistor

Datasheet Summary

Description

Drain Current ID=8A@ TC=25℃ Drain Source Voltage- : VDSS= 900V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Contactless relay Diving circuit for a solenoid Driving circuit for a

Datasheet Details

Part number	2SK1803
Manufacturer	Inchange Semiconductor
File Size	216.94 KB
Description	N-Channel MOSFET Transistor
Datasheet	2SK1803 Datasheet
Additional preview pages of the 2SK1803 datasheet.

📁 Similar Datasheet

2SK1803 - Silicon N-Channel MOSFET (Panasonic)

2SK180 - Power FET (Yoshino International)

2SK1805 - Field Effect Transistor (Toshiba)

2SK1807 - N-Channel MOSFET (Hitachi Semiconductor)

2SK1807 - Silicon N-Channel MOSFET (Renesas)

2SK1808 - N-Channel MOSFET (Hitachi Semiconductor)

2SK1809 - N-Channel MOSFET (Hitachi Semiconductor)

2SK18 - Silicon N-Channel Transistor (Toshiba)

2SK181 - (2SK180 - 2SK183) Power FET (Yoshino International)

2SK1813 - N-Channel Silicon MOSFET (Sanyo Semicon Device)

Full PDF Text Transcription

Click to expand full text

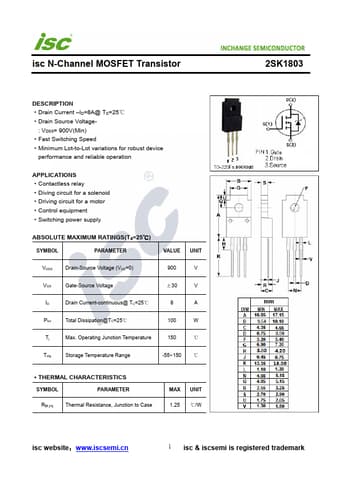

isc N-Channel MOSFET Transistor DESCRIPTION ·Drain Current –ID=8A@ TC=25℃ ·Drain Source Voltage- : VDSS= 900V(Min) ·Fast Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Contactless relay ·Diving circuit for a solenoid ·Driving circuit for a motor ·Control equipment ·Switching power supply ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 900 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 8 A Ptot Total Dissipation@TC=25℃ 100 W Tj Max. Operating Junction Temperature 150 ℃ Tstg Storage Temperature Range -55~150 ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junction to Case MAX UNIT 1.
