2SK1807 - N-Channel MOSFET

2SK1807 Description

2SK1807 Silicon N-Channel MOS FET Application High speed power switching .

2SK1807 Features

* Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switchingregulator, DC-DC converter Outline TO-220AB D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK1807 Absolute Maximum Ratings (Ta = 25°C) Ite

📥 Download Datasheet

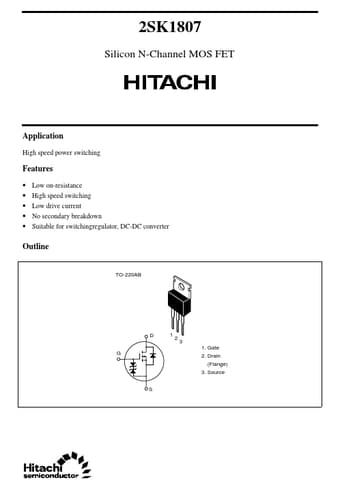

Preview of 2SK1807 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK1807
Manufacturer
Hitachi Semiconductor
File Size
32.82 KB
Datasheet
2SK1807_HitachiSemiconductor.pdf
Description
N-Channel MOSFET
