2SK3688-01S Datasheet, Mosfet Transistor, Inchange Semiconductor

N-channel mosfet transistor

📥 Download PDF (357.52 KB)

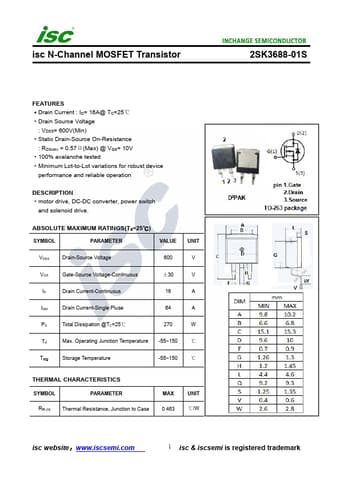

2SK3688-01S Datasheet Preview Page 1 — Preview of 2SK3688-01S Datasheet

PDF File Details

Part number:

2SK3688-01S

Manufacturer:

Inchange Semiconductor

File Size:

357.52 KB

Download:

📄 Download the 2SK3688-01S Datasheet PDF

Description:

N-channel mosfet transistor.
*motor drive, DC-DC converter, power switch
and solenoid drive.

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

VA.

✔ 2SK3688-01S Features

Drain Current : ID= 16A@ TC=25℃
Drain Source Voltage : VDSS= 600V(Min)
Static Drain-Source On-Resistance : RDS(on) = 0.57Ω(Max) @ VGS= 10V
100% avalanche tested
Mini

✔ 2SK3688-01S Application

of our products. ISC products are intended for usage in general electronic equipment. The products are not d
