2SK3688-01SJ Datasheet - Inchange Semiconductor

2SK3688-01SJ N-Channel MOSFET Transistor

*motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 16 A IDM Drain Current-Single Pluse 64 A PD Tot.

2SK3688-01SJ Datasheet (357.67 KB)

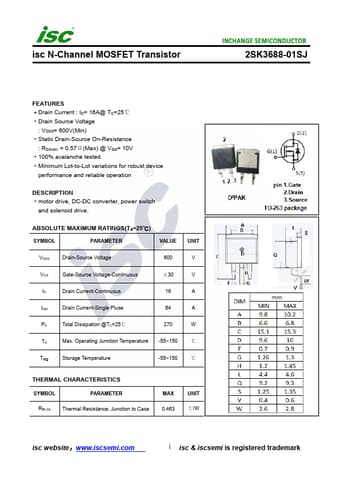

2SK3688-01SJ Datasheet Preview — Preview of 2SK3688-01SJ PDF

Datasheet Details

Part number:

2SK3688-01SJ

Manufacturer:

Inchange Semiconductor

File Size:

357.67 KB

Description:

N-channel mosfet transistor.
