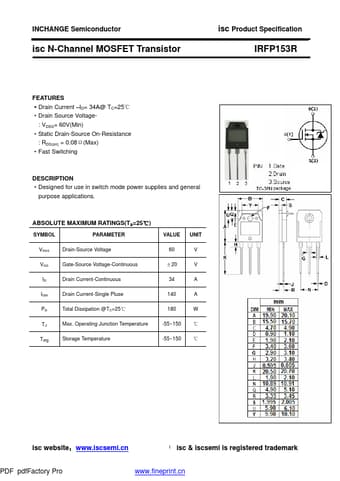

IRFP153R Datasheet, Transistor, Inchange Semiconductor

IRFP153R Features

• Transistor
• Drain Current
    –ID= 34A@ TC=25℃
• Drain Source Voltage- : VDSS= 60V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 0.08Ω(Max)
• Fast S

PDF File Details

Part number:

IRFP153R

Manufacturer:

Inchange Semiconductor

File Size:

63.73kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

IRFP153R Application

• Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 60 ±2
