IRFP152R - N-Channel MOSFET Transistor

IRFP152R Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification IRFP152R .
Designed for use in switch mode power supplies and general purpose applications.

IRFP152R Features

* Drain Current
* ID= 34A@ TC=25℃
* Drain Source Voltage- : VDSS= 100V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.08Ω(Max)

IRFP152R Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 100 ±20 V V ID Drain Current-Continuous 34 A IDM Drain Current-Single Pluse 140 A PD Total Dissipation @TC=25℃ 180 W TJ Max. Operating Junction Temperature -55~

📥 Download Datasheet

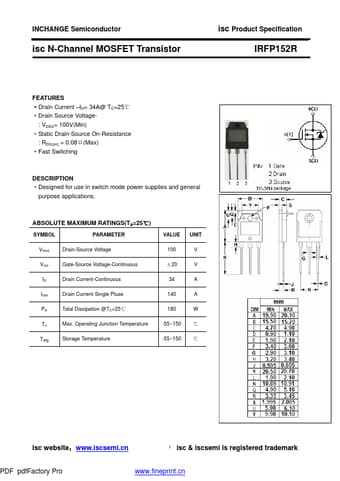

Preview of IRFP152R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFP152R
Manufacturer
Inchange Semiconductor
File Size
63.73 KB
Datasheet
IRFP152R-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
