IRFP150R Datasheet, Transistor, Inchange Semiconductor

IRFP150R Features

• Transistor
• Drain Current
    –ID= 40A@ TC=25℃
• Drain Source Voltage- : VDSS= 100V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 0.055Ω(Max)
• Fast

PDF File Details

Part number:

IRFP150R

Manufacturer:

Inchange Semiconductor

File Size:

62.04kb

Download:

📄 Datasheet

Description:

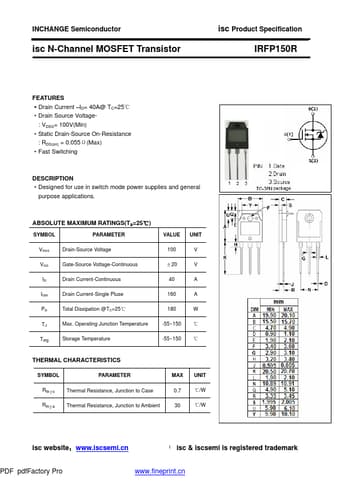

N-channel mosfet transistor. Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

IRFP150R Application

• Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 100 ±
