IRFP150MPBF - N-Channel MOSFET

IRFP150MPBF Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor IRFP150MPBF .
Designed for use in switch mode power supplies and general purpose applications.

IRFP150MPBF Features

* Drain Current
* ID= 42A@ TC=25℃
* Drain Source Voltage- : VDSS= 100V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.036Ω(Max)
* Fast Switching

IRFP150MPBF Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max. Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 100 V

📥 Download Datasheet

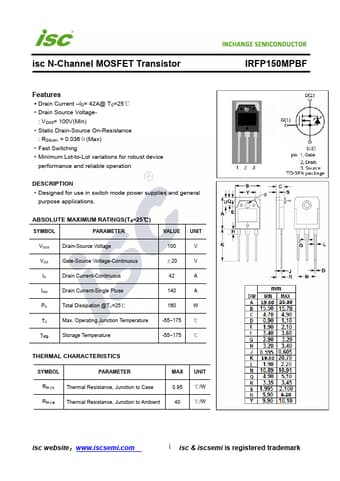

Preview of IRFP150MPBF PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFP150MPBF
Manufacturer
INCHANGE
File Size
204.67 KB
Datasheet
IRFP150MPBF-INCHANGE.pdf
Description
N-Channel MOSFET
