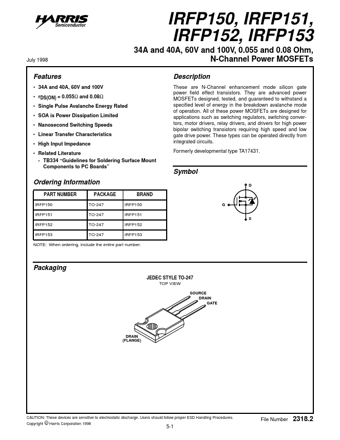

Part number: IRFP150
Manufacturer: Harris
File Size: 48.97KB
Download: 📄 Datasheet
Description: N-Channel Power MOSFETs
* 34A and 40A, 60V and 100V
* rDS(ON) = 0.055Ω and 0.08Ω
* Single Pulse Avalanche Energy Rated
* SOA is Power Dissipation Limited
* Nanosecond Switchi.
such as s.
These are N-Channel enhancement mode silicon gate power field effect transistors. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation. All of these power.
