IRFS620A N-Channel MOSFET Transistor

Inchange Semiconductor

Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification IRFS620A .
Designed for use in switch mode power supplies and general purpose applications.

📥 Download Datasheet

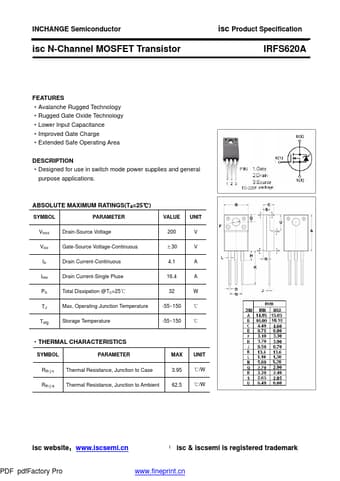

IRFS620A Datasheet Preview — Preview of IRFS620A PDF

Datasheet Specifications

Part number: IRFS620A
Manufacturer: Inchange Semiconductor
File Size: 53.20 KB
Datasheet: IRFS620A-InchangeSemiconductor.pdf
Description: N-Channel MOSFET Transistor

Features

* Avalanche Rugged Technology
* Rugged Gate Oxide Technology
* Lower Input Capacitance
* Improved Gate Charge

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 200 ±30 V V ID Drain Current-Continuous 4.1 A IDM Drain Current-Single Pluse 16.4 A PD Total Dissipation @TC=25℃ 32 W TJ Max. Operating Junction Temperature -55
