MBR3060PT - Schottky Barrier Rectifier

Datasheet Summary

Features

  • Low power loss,high efficiency.
  • High surge capability.
  • Metal silicon rectifier, majonty carrier conduction.
  • Guard ring for over voltage protection.
  • High Current Capability，low forward voltage drop.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations f or robust device performance and reliable operation.

📥 Download Datasheet

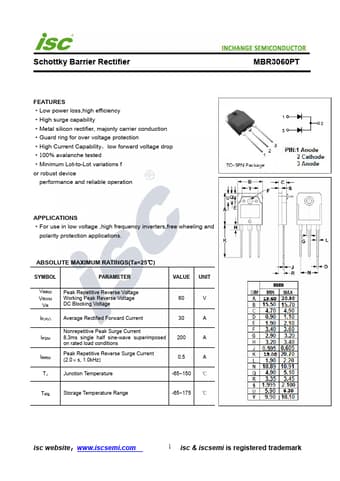

Datasheet preview – MBR3060PT

Datasheet Details

Part number MBR3060PT
Manufacturer Inchange Semiconductor
File Size 187.53 KB
Description Schottky Barrier Rectifier
Datasheet download datasheet MBR3060PT Datasheet
Additional preview pages of the MBR3060PT datasheet.

📁 Similar Datasheet

  • MBR3060PT - Dual Schottky Barrier Rectifiers (GOOD-ARK)
  • MBR3060PT - DUAL SCHOTTKY BARRIER RECTIFIERS (EIC)
  • MBR3060PT - 30A Schottky Barrier Rectifiers (TAITRON)
  • MBR3060PT - 30 Ampere Schottky Barrier Rectifiers (Fairchild Semiconductor)
  • MBR3060PT - 30A SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • MBR3060PT - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (MIC)
  • MBR3060PT - 30.0 Ampere Dual Common Cathode Schottky Barrier Rectifiers (Thinki Semiconductor)
  • MBR3060PT - (MBR3020PT - MBR3060PT) Schottky Barrier Rectifier (MCC)
  • MBR3060PT - Schottky Barrier Rectifiers (Luguang Electronic)
  • MBR3060PT - Schottky Barrier Rectifiers (Pan Jit)
Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text
Schottky Barrier Rectifier INCHANGE Semiconductor MBR3060PT FEATURES ·Low power loss,high efficiency ·High surge capability ·Metal silicon rectifier, majonty carrier conduction ·Guard ring for over voltage protection ·High Current Capability，low forward voltage drop ·100% avalanche tested ·Minimum Lot-to-Lot variations f or robust device performance and reliable operation APPLICATIONS ·For use in low voltage ,high frequency inverters,free wheeling and polarity protection applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR IF(AV) Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current 60 V 30 A Nonrepetitive Peak Surge Current IFSM 8.
