STP315N10F7 Datasheet - Inchange Semiconductor

STP315N10F7 N-Channel MOSFET Transistor

*motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 100 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 180 A IDM Drain Current-Single Pluse 720 A PD T.

STP315N10F7-InchangeSemiconductor.pdf

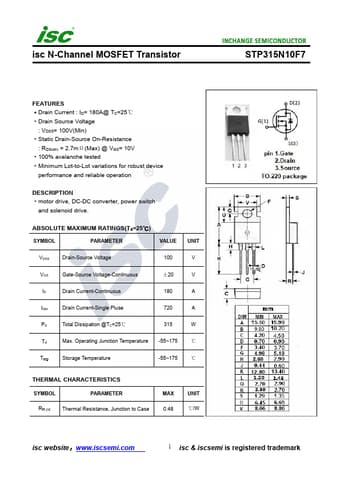

Preview of STP315N10F7 PDF
STP315N10F7 Datasheet Preview Page 2

Datasheet Details

Part number:

STP315N10F7

Manufacturer:

Inchange Semiconductor

File Size:

289.02 KB

Description:

N-channel mosfet transistor.
