STP75NF75 Datasheet, Transistor, Inchange Semiconductor

STP75NF75 Features

  • Transistor
  • Drain Current
      –ID= 80A@ TC=25℃
  • Drain Source Voltage- : VDSS= 75V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 0.011Ω(Max)
  • 100%

PDF File Details

Part number:

STP75NF75

Manufacturer:

Inchange Semiconductor

File Size:

236.49kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor. Suitable as primary switch in advanced high-efficiency, highfrequency isolated DC-DC converters for Telecom and Computer applications

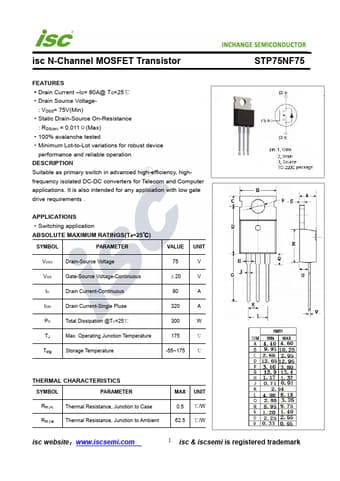

Datasheet Preview: STP75NF75 📥 Download PDF (236.49kb)
Page 2 of STP75NF75

STP75NF75 Application

  • Applications It is also intended for any application with low gate drive requirements . APPLICATIONS
  • Switching application ABSOLUTE MAXIM
