STP75N75F4 Datasheet, Mosfet, STMicroelectronics

STP75N75F4 Features

  • Mosfet Type STP75N75F4 VDSS 75 V RDS(on) max < 0.011 Ω ID 78 A
  • N-channel enhancement mode
  • 100% avalanched rated
  • Low gate charge
  • Very low on-resista

PDF File Details

Part number:

STP75N75F4

Manufacturer:

STMicroelectronics ↗

File Size:

188.84kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This device is an N-channel Power MOSFET developed using ST’s STripFET™ DeepGATE™ technology. The device has a new gate structure and

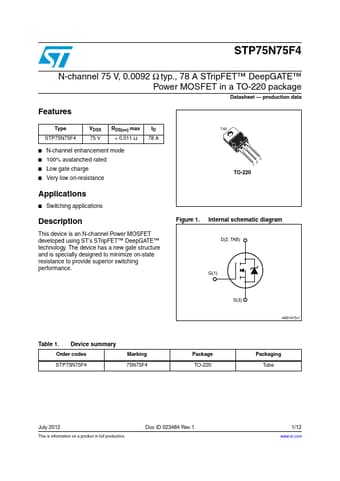

Datasheet Preview: STP75N75F4 📥 Download PDF (188.84kb)
Page 2 of STP75N75F4 Page 3 of STP75N75F4

STP75N75F4 Application

  • Applications
  • Switching applications Description This device is an N-channel Power MOSFET developed using ST’s STripFET™ DeepGATE™ technol
