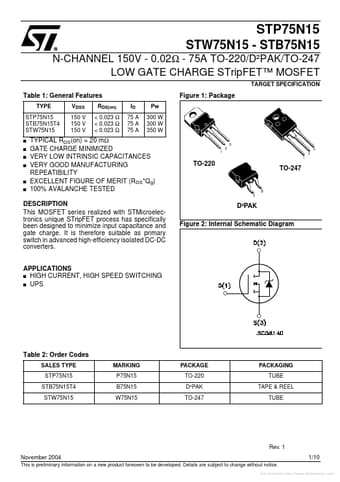

* TYPE STP75N15 STB75N15T4 STW75N15 s s s s Figure 1: Package ID 75 A 75 A 75 A Pw 300 W 300 W 350 W 3 1 2 2 1 3 VDSS 150 V 150 V 150 V RDS(on) < 0.023 Ω < 0.023 Ω < 0.023 Ω s s TYPICAL RDS(on) = 20 mΩ GATE CHARGE MINIMIZED VERY LOW INTRINSIC CAPACITANCES VERY GOOD MANUFACTURING REPEATIBILITY EXC
STP75N15 Datasheet (213.13 KB)
STP75N15
213.13 KB
N-channel mosfet.
STP75N15
STW75N15 - STB75N15
N-CHANNEL 150V - 0.02Ω - 75A TO-220/D²PAK/TO-247 LOW GATE CHARGE STripFET™ MOSFET
TARGET SPECIFICATION
Table 1: General .
