Datasheet Details
- Part number
- STP75NF75
- Manufacturer
- STMicroelectronics ↗
- File Size
- 404.35 KB
- Datasheet
- STP75NF75_STMicroelectronics.pdf
- Description
- N-CHANNEL MOSFET
STP75NF75 Description

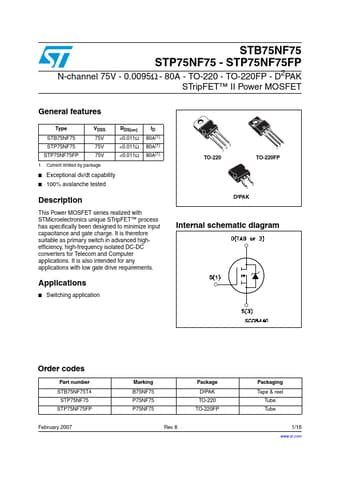

STB75NF75 STP75NF75 - STP75NF75FP N-channel 75V - 0.0095Ω - 80A - TO-220 - TO-220FP - D2PAK STripFET™ II Power MOSFET General .
This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input capacitance and ga.
STP75NF75 Features
* Type STB75NF75 STP75NF75 STP75NF75FP
VDSS 75V 75V 75V
RDS(on)
STP75NF75 Applications
* It is also intended for any applications with low gate drive requirements. Applications
* Switching application
3 2 1
TO-220
3 2 1
TO-220FP
3 1
D²PAK
Internal schematic diagram
Order codes
Part number STB75NF75T4
STP75NF75 STP75NF75FP
February 2007
Marking B75NF75 P75NF75 P75NF75
Rev 8
