STP75N3LLH6

N-channel MOSFET

STP75N3LLH6 Features

* TAB TAB Order codes STD75N3LLH6 STP75N3LLH6 STU75N3LLH6 STU75N3LLH6-S VDSS RDS(on) max < 0.0055 Ω ID 3 2 1 1 3 DPAK TAB 30 V < 0.0059 Ω 75 A IPAK TAB

* RDS(on)

* Qg industry benchmark Extremely low on-resistance RDS(on) High avalanche ruggedness Low gate drive p

STP75N3LLH6 General Description

This N-Channel Power MOSFET product utilizes the 6th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in all packages. G(1) S(3) AM01474v1 Table 1. Device summary Marking Package DPAK TO-220 75N.

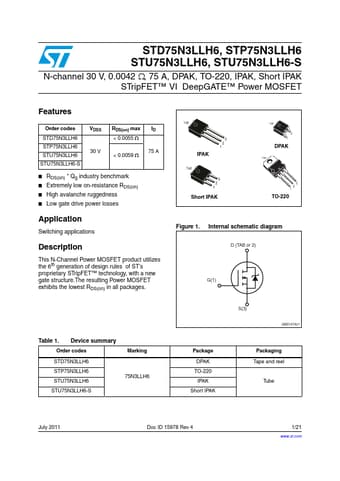

STP75N3LLH6 Datasheet (581.47 KB)

Preview of STP75N3LLH6 PDF

Datasheet Details

Part number:

STP75N3LLH6

Manufacturer:

STMicroelectronics ↗

File Size:

581.47 KB

Description:

N-channel mosfet.
STD75N3LLH6, STP75N3LLH6 STU75N3LLH6, STU75N3LLH6-S N-channel 30 V, 0.0042 Ω, 75 A, DPAK, TO-220, IPAK, Short IPAK STripFET™ VI DeepGATE™ Power MOSFET.
