STP70N10F4 N-CHANNEL MOSFET

STP70N10F4 Description

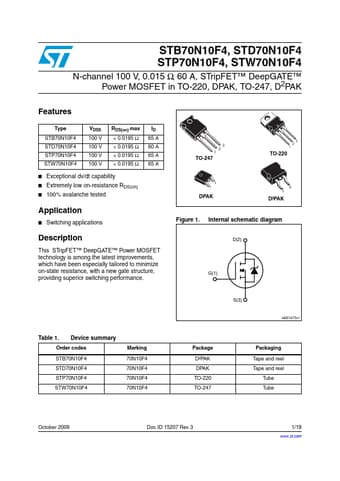

STB70N10F4, STD70N10F4 STP70N10F4, STW70N10F4 N-channel 100 V, 0.015 Ω, 60 A, STripFET™ DeepGATE™ Power MOSFET in TO-220, DPAK, TO-247, D2PAK .
This STripFET™ DeepGATE™ Power MOSFET technology is among the latest improvements, which have been especially tailored to minimize on-state resistance.

STP70N10F4 Features

* Type STB70N10F4 STD70N10F4 STP70N10F4 STW70N10F4 VDSS 100 V 100 V 100 V 100 V RDS(on) max < 0.0195 Ω < 0.0195 Ω < 0.0195 Ω < 0.0195 Ω ID 65 A 60 A 65 A 65 A
* Exceptional dv/dt capability
* Extremely low on-resistance RDS(on)
