STP75NF20 - N-channel Power MOSFET

STP75NF20 Description

STB75NF20 STP75NF20 - STW75NF20 N-channel 200V - 0.028Ω - 75A - D2PAK - TO-220 - TO-247 Low gate charge STripFET™ Power MOSFET General .
This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input capacitance and ga.

STP75NF20 Features

* www. DataSheet4U. com Type VDSS 200V 200V 200V RDS(on)

STP75NF20 Applications

* Switching application Order codes Part number STB75NF20 STP75NF20 STW75NF20 Marking 75NF20 75NF20 75NF20 Package D²PAK TO-220 TO-247 Packaging Tape & reel Tube Tube March 2007 Rev 2 1/16 www. st. com 16 Contents STB75NF20 - STP75NF20 - STW75NF20 Contents 1 2 Electrical ratings

📥 Download Datasheet

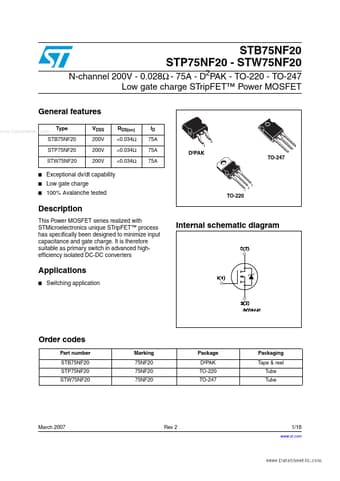

Preview of STP75NF20 PDF
datasheet Preview Page 2 datasheet Preview Page 3
