STP75NF75L - N-CHANNEL MOSFET

STP75NF75L Description

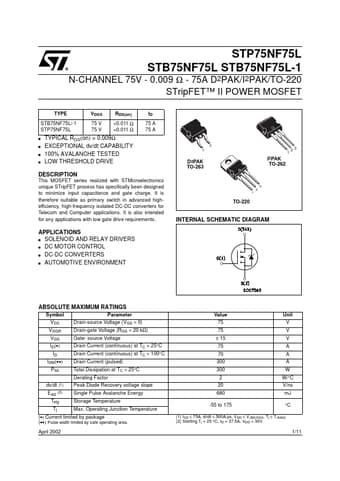

N-CHANNEL 75V - 0.009 Ω - 75A D2PAK/I2PAK/TO-220 STripFET™ II POWER MOSFET TYPE STB75NF75L/-1 STP75NF75L s s s s STP75NF75L STB75NF75L STB75NF75L-1 .
This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate char.

STP75NF75L Applications

* It is also intended for any applications with low gate drive requirements. 3 1 2 TO-220 INTERNAL SCHEMATIC DIAGRAM APPLICATIONS SOLENOID AND RELAY DRIVERS s DC MOTOR CONTROL s DC-DC CONVERTERS s AUTOMOTIVE ENVIRONMENT s ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(
* ) ID IDM(
