BAR88-07L4 Silicon PIN Diode

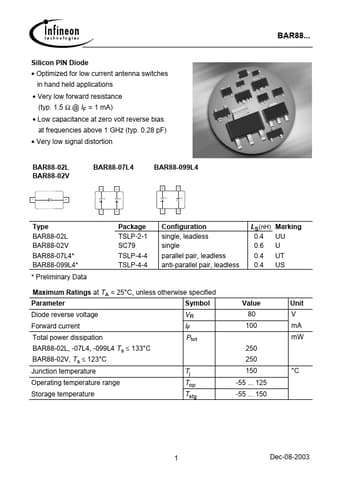

BAR88 Silicon PIN Diode Optimized for low current antenna switches in hand held applications Very low forward resistance (typ. 1.5 Ω @ IF = 1 mA) Low capacitance at zero volt reverse bias at frequencies above 1 GHz (typ. 0.28 pF) Very low signal distortion BAR88-02L BAR88-02V BAR88-07L4 4 3 BAR88-099L4 4 3 1 2 D 1 D 2 D 1 D 2 1 2 1 2 Type BAR88-02L BAR88-02V BAR88-07L4 BAR88-099L4 Package TSLP-2-1 SC79 TSLP-4-4 TSLP-4-4 Configurat.

BAR-88.pdf

BAR88-07L4 Datasheet Preview — This datasheet PDF includes multiple part numbers: BAR88-07L4, BAR. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAR88-07L4, BAR

Manufacturer:

Infineon ↗ Technologies AG

File Size:

476.23 KB

Description:

Silicon pin diode.

Note:

This datasheet PDF includes multiple part numbers: BAR88-07L4, BAR.
Please refer to the document for exact specifications by model.
