BTS140A - TEMPFET

Infineon Technologies AG

Datasheet Details

Part number	BTS140A
Manufacturer	Infineon ↗ Technologies AG
File Size	451.64 KB
Description	TEMPFET
Datasheet	BTS140A_InfineonTechnologiesAG.pdf

and charts stated herein.

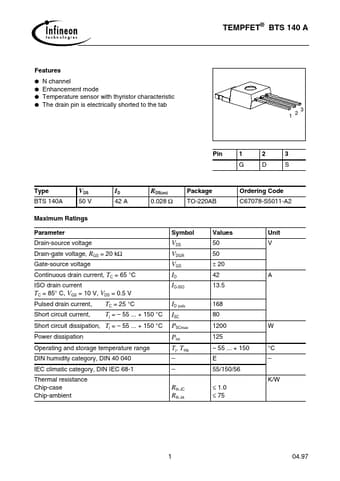

q q q q N channel Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shorted to the tab 1 2 3 Pin 1 G 2 D 3 S Type BTS 140A VDS 50 V ID 42 A RDS(on) 0.028 Ω Package TO-220AB Ordering Code C67078-S5011-A2 Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source voltage Continuous drain current, TC = 65 °C ISO drain current TC = 85° C, VGS = 10 V, VDS = 0.5 V Pulsed drain current, Short circuit current, Sym.
