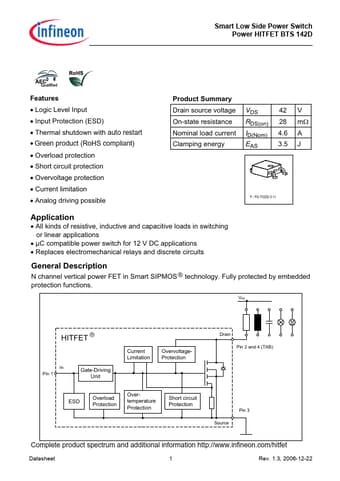

BTS142D Datasheet, Switch, Infineon Technologies AG

BTS142D Features

• Switch
• Logic Level Input
• Input Protection (ESD)
• Thermal shutdown with auto restart
• Green product (RoHS compliant)
• Overload protection

PDF File Details

Part number:

BTS142D

Manufacturer:

Infineon ↗ Technologies AG

File Size:

222.18kb

Download:

📄 Datasheet

Description:

Smart lowside power switch. N channel vertical power FET in Smart SIPMOSÒ technology. Fully protected by embedded protection functions. Vbb HITFET â In Pin 1

BTS142D Application

• Applications
• µC compatible power switch for 12 V DC applications
• Replaces electromechanical relays and discrete circuits General
