BTS140A Datasheet - Siemens Semiconductor Group

BTS140A TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)

BTS140A Features

* q q q q N channel Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shorted to the tab 1 2 3 Pin 1 G 2 D 3 S Type BTS 140A VDS 50 V ID 42 A RDS(on) 0.028 Ω Package TO-220AB Ordering Code C67078-S5011-A2 Maximum Ratings Parameter Drain-source

BTS140A_SiemensSemiconductorGroup.pdf

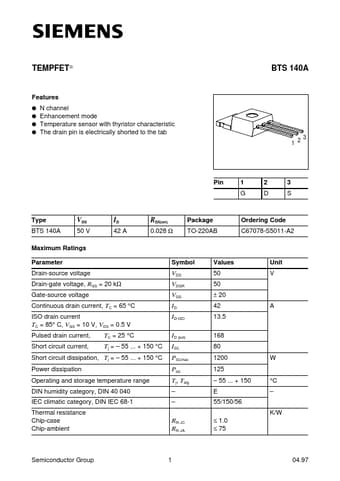

Preview of BTS140A PDF
BTS140A Datasheet Preview Page 2 BTS140A Datasheet Preview Page 3

Datasheet Details

Part number:

BTS140A

Manufacturer:

Siemens Semiconductor Group

File Size:

315.89 KB

Description:

Tempfet (n channel enhancement mode temperature sensor with thyristor characteristic).
