BTS141TC - Smart Low Side Power Switch

Datasheet Summary

Description

N channel vertical power FET in Smart SIPMOS® chip on chip technology.

Providing embedded protection functions.

Features

Logic Level Input.
Input Protection (ESD).
=Thermal shutdown with latch.
Overload protection.
Short circuit protection.
Overvoltage protection.
Current limitation.
Status feedback with external input resistor.
Analog driving possible.
AEC qualified.
Green product (RoHS compliant) Product Summary Drain source voltage On-state resistance Current limit Nominal load current Clamping energy VDS RDS(on.

Datasheet Details

Part number	BTS141TC
Manufacturer	Infineon Technologies
File Size	220.53 KB
Description	Smart Low Side Power Switch
Datasheet	BTS141TC Datasheet
Additional preview pages of the BTS141TC datasheet.

📁 Similar Datasheet

BTS141 - Smart Lowside Power Switch (Infineon Technologies AG)

BTS140A - TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic) (Siemens Semiconductor Group)

BTS140A - TEMPFET (Infineon Technologies AG)

BTS142D - Smart Lowside Power Switch (Infineon Technologies AG)

BTS149 - Smart Lowside Power Switch (Infineon Technologies AG)

BTS100 - Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic) (Siemens Semiconductor Group)

BTS100 - Smart Highside Power Switch (Infineon Technologies AG)

BTS110 - TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic) (Siemens Semiconductor Group)

BTS110 - TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic) (Infineon Technologies AG)

Full PDF Text Transcription

Click to expand full text

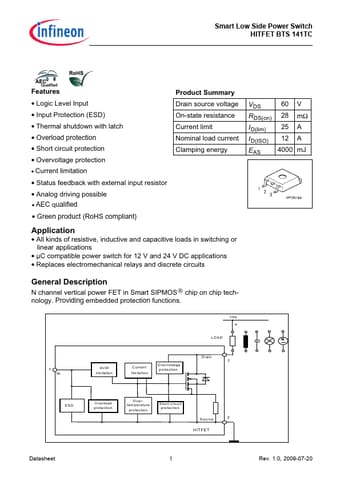

Smart Low Side Power Switch HITFET BTS 141TC Features • Logic Level Input • Input Protection (ESD) •=Thermal shutdown with latch • Overload protection • Short circuit protection • Overvoltage protection • Current limitation • Status feedback with external input resistor • Analog driving possible • AEC qualified • Green product (RoHS compliant) Product Summary Drain source voltage On-state resistance Current limit Nominal load current Clamping energy VDS RDS(on) I D(lim) I D(ISO) EAS 60 V 28 mΩ 25 A 12 A 4000 mJ Application • All kinds of resistive, inductive and capacitive loads in switching or linear applications • μC compatible power switch for 12 V and 24 V DC applications • Replaces electromechanical relays and discrete circuits General Description N channel vertical power FET in
