BTS4140N Datasheet - Infineon Technologies AG

Smart High-Side Power Switch

BTS4140N Features

* Current controlled input

* Short circuit protection

* Current limitation

* Overload protection

* Overvoltage protection (including load dump)

* Switching inductive loads

* Clamp of negative voltage at output with inductive loads

* The

BTS4140N General Description

N channel vertical power MOSFET with charge pump and current controlled input, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. Page 1 2004-01-27 BTS 4140 N Block Diagram + V bb 2 /4 C o n tro l C irc u it OUT 3 R IN IN 1 R L T e m p e ra tu re Sen.

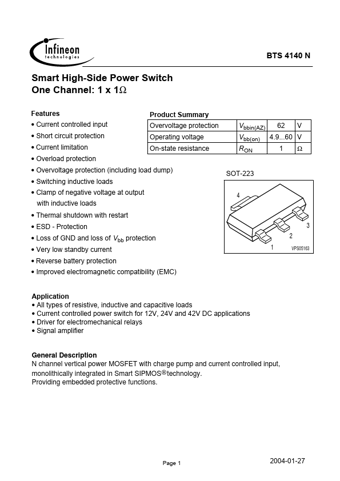

BTS4140N Datasheet (435.00 KB)

BTS4140N Datasheet Preview — Preview of BTS4140N PDF

Datasheet Details

Part number:

BTS4140N

Manufacturer:

Infineon ↗ Technologies AG

File Size:

435.00 KB

Description:

Smart high-side power switch.
