BTS412B2E3043 - Smart Highside Power Switch

Product Overview

Infineon Technologies AG

Datasheet Details

Part number	BTS412B2E3043
Manufacturer	Infineon Technologies AG
File Size	170.31 KB
Description	Smart Highside Power Switch
Datasheet	BTS412B2E3043 Datasheet

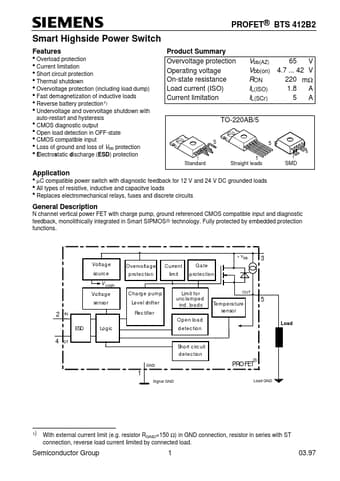

Additional preview pages of the BTS412B2E3043 datasheet.

Product details

Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology.

Features

Overload protection.
Current limitation.
Short circuit protection.
Thermal shutdown.
Overvoltage protection (including load dump).
Fast demagnetization of inductive loads.
Reverse battery protection1).
Undervoltage and overvoltage shutdown with auto-restart and hysteresis.
CMOS diagnostic output.
Open load detection in OFF-state.
CMOS compatible input.
Loss of ground and loss of Vbb prote.
