BTS410E2 Datasheet - Siemens Semiconductor Group

BTS410E2 - Smart Highside Power Switch (Overload protection Current limitation Short circuit protection Thermal shutdown)

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOSĀ® technology.

Fully protected by embedded protection functions.

+ V bb 3 Voltage source Overvoltage protection Current limit Gate protection

BTS410E2 Features

* Overload protection

* Current limitation

* Short circuit protection

* Thermal shutdown

* Overvoltage protection (including load dump)

* Fast demagnetization of inductive loads

* Reverse battery protection1)

* Undervoltage and overvolt

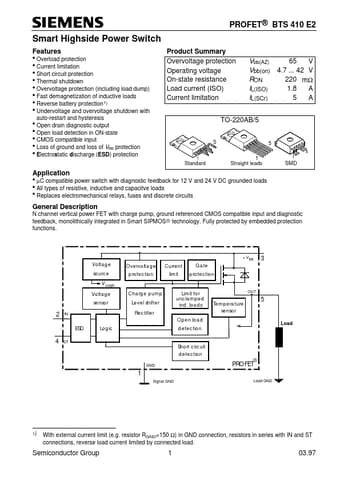

BTS410E2_SiemensSemiconductorGroup.pdf

Preview of BTS410E2 PDF
BTS410E2 Datasheet Preview Page 2 BTS410E2 Datasheet Preview Page 3

Datasheet Details

Part number:

BTS410E2

Manufacturer:

Siemens Semiconductor Group

File Size:

168.99 KB

Description:

Smart highside power switch (overload protection current limitation short circuit protection thermal shutdown).
