BTS4141D Smart High-Side Power Switch

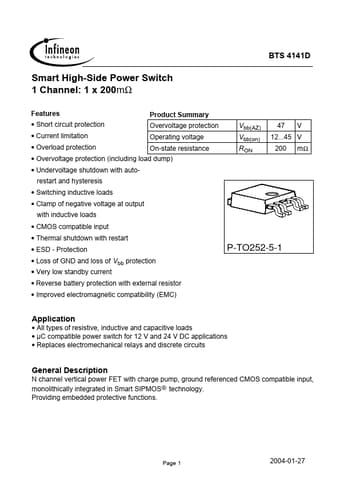

N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. Page 1 2004-01-27 BTS 4141D Block Diagram + Vbb Voltage source V Logic Voltage sensor R in TAB/3 Overvoltage .

BTS4141D Features

* Short circuit protection

* Current limitation

* Overload protection Product Summary Overvoltage protection Operating voltage Vbb(AZ) Vbb(on) RON 47 200 V mΩ 1245 V On-state resistance

* Overvoltage protection (including load dump)

* Undervoltage shutdown wi
