BTS410F2 - Smart Highside Power Switch

Product Overview

Siemens Semiconductor Group

Datasheet Details

Part number	BTS410F2
Manufacturer	Siemens Semiconductor Group
File Size	167.71 KB
Description	Smart Highside Power Switch
Datasheet	BTS410F2 Datasheet

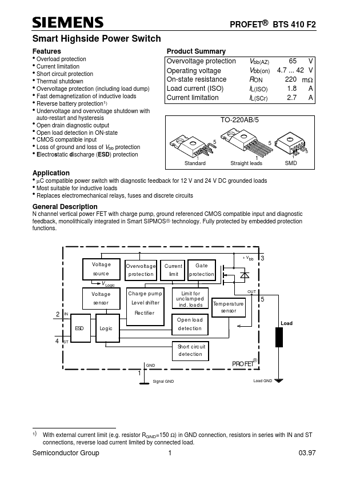

Additional preview pages of the BTS410F2 datasheet.

Product details

Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology.

Features

Overload protection.
Current limitation.
Short circuit protection.
Thermal shutdown.
Overvoltage protection (including load dump).
Fast demagnetization of inductive loads.
Reverse battery protection1).
Undervoltage and overvoltage shutdown with auto-restart and hysteresis.
Open drain diagnostic output.
Open load detection in ON-state.
CMOS compatible input.
Loss of ground and loss of Vbb.
